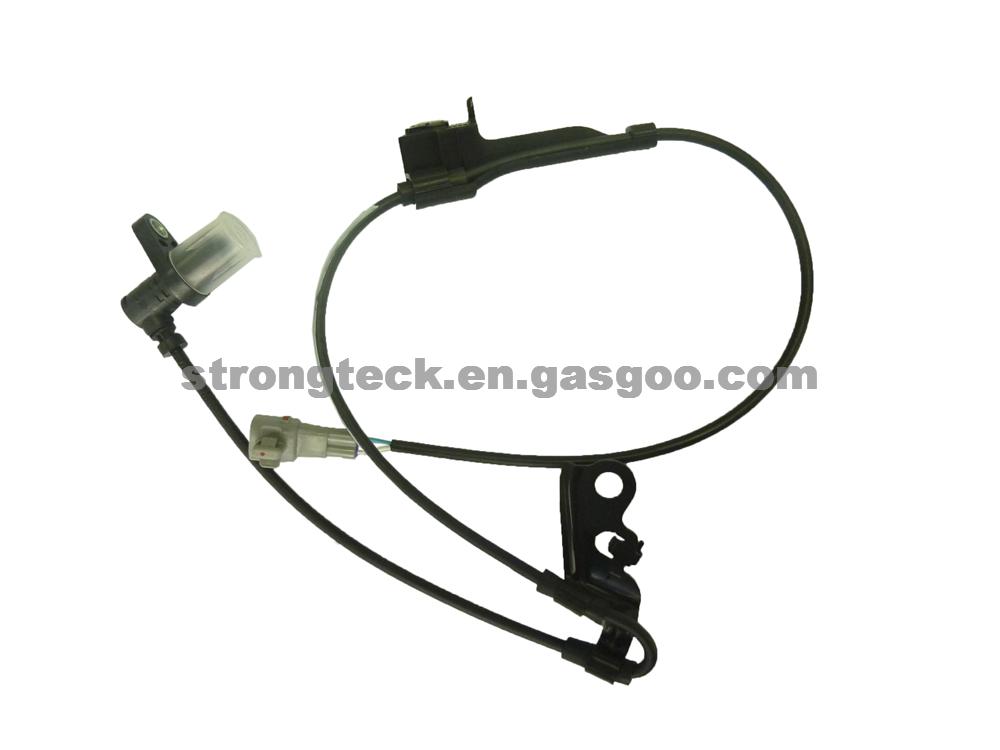

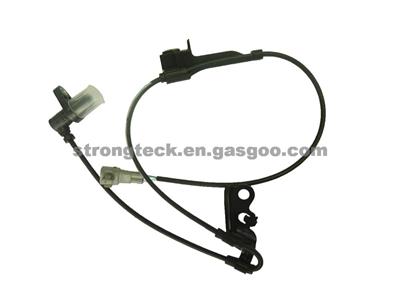

TOYOTA COROLLA ABS SENSOR 89543-12070
Input Voltage:/v
Output Voltage:500mv
Current:/A
Resistive:90-1200Ω
Output:Digital signal
Size:890mm
Weight:200g
Color:Black
OE NO.:89543-12070
TOYOTA COROLLA 2002-2007
Product Name: Toyota ABS SENSOR 89543-12070 OEM No/Model: 89543-12070 ABS(Anti-lock Brake System) wheel speed sensor . The variable reluctance WSS use a small internal magnet and coil of wire to generate a signal to the ABS control module. As the tone wheel rotates, a magnetic field fluctuates around the sensor and induces alternating current (AC) voltage into the internal coil windings. AC voltage is sent through a two-wire connector and harness to the ABS control module. The ABS controller interprets the AC voltage and frequency from the variable reluctance sensor as a wheel speed signal input.
